凝膠孔制備,用于斑馬魚幼蟲和胚胎成像和定位。

Stampwell stamps imprint arrays of wells in hydrogels in just one time. Nothing more to do than load your samples into the wells and image. The Stampwell shapes have been optimized for the imaging of fish embryos or larvae up to 20 dpf.

 Save time: no need to manually position your samples individually. Fish embryos/larvae will self-position in the wells.

Boost your assay reproducibility: once loaded in the wells, your samples are perfectly positioned, aligned and located on a similar focal plane.

Open system: direct access to embryos/larvae for adding external compounds (i.e. drug screening).

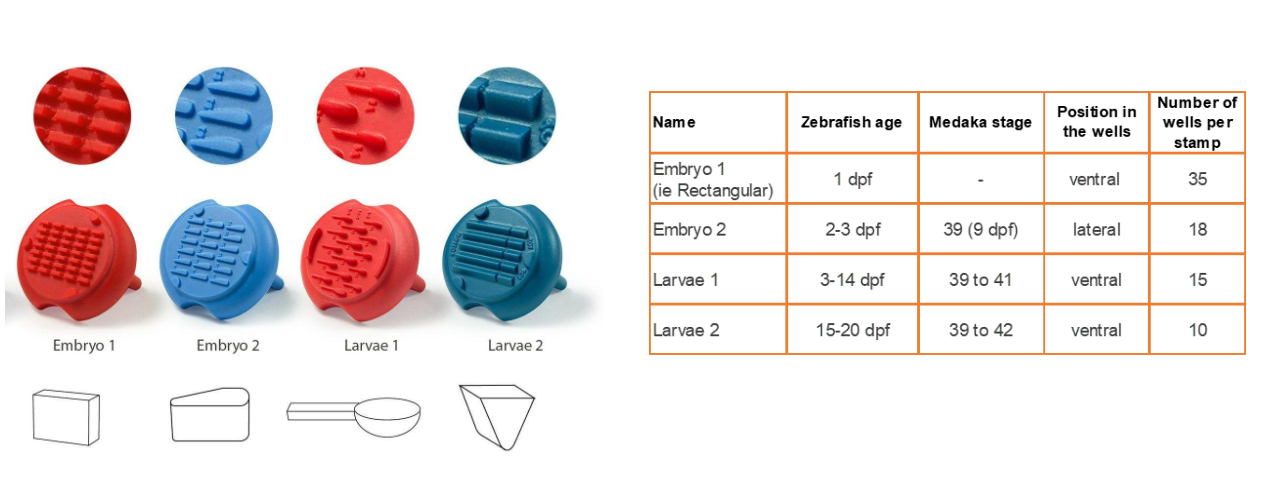

4 different shapes
depending on the size and orientation of your fish embryos.



Embryo 1 (ie Rectangular) ?
. Number of pins: 35
. Shape of the pins: rectangular
. Length * width of the wells: 2 mm * 0,65 mm

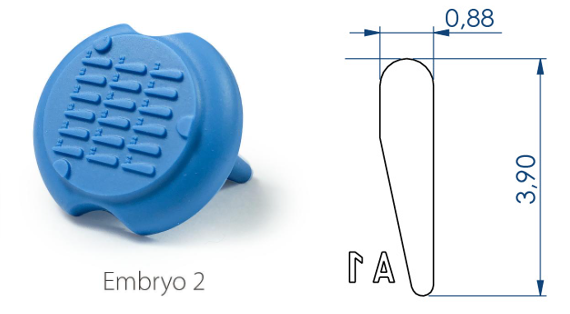

Embryo 2: ?
. Number of pins: 18
. Shape of the pins: a drop
. Length of the wells: 3.90 mm
. Largest width of the wells: 0.88 mm

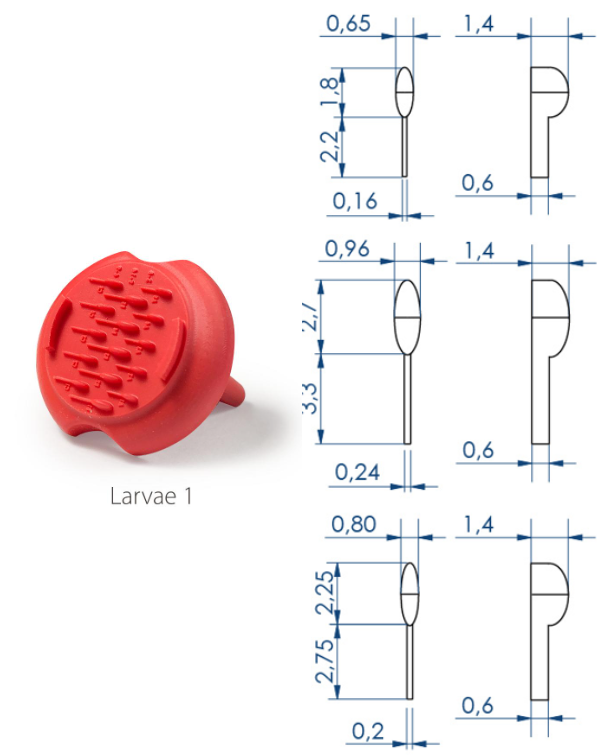

Larvae 1: ?
. Number of pins: 5 large pins ideal for the 9-14 dpf zebrafishes + 5 medium pins ideal for the 6-9 dpf zebrafishes + 5 small pins ideal for the 3-6 dpf zebrafishes
. Shape of the pins: fish body and tail
. Length of the 5 large wells: 6 mm, 2.7 for the body and 3.3 for the tail
. Length of the 5 medium wells: 5 mm, 2.25 for the body and 2.75 for the tail
. Length of the 5 small wells: 4 mm, 1.8 for the body and 2.2 for the tail

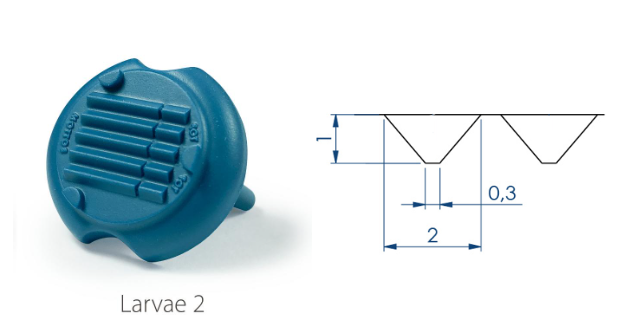

Larvae 2: ?
. Number of pins: 5 large wells ideal for the 15-20 dpf zebrafish or 39-42 dpf medaka larvae + 5 small wells ideal for the 1-2 dpf zebrafish
. Shape of the pins: prism
. Length of the 5 large wells: 10 mm
. Length of the 5 small wells: 3 mm
. Well depth: 1 mm

Plate compatibility:

The stamp has a total diameter of 26 mm. It can be used in:

• 35 mm circular petri dishes with an aperture of at least 22 mm
• any larger vessel (i.e. 6-well plates)

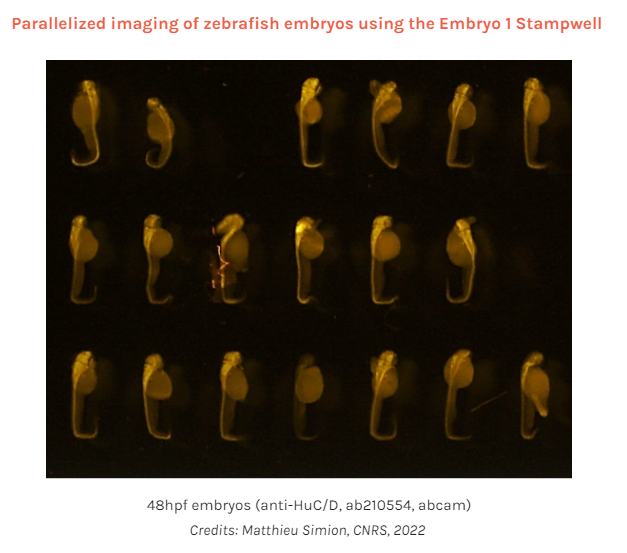

Result
