凝膠V型孔制備（3D細胞成像），Stampwell只需一次即可在水凝膠中壓印V形孔。沒有什么比把你的樣品加載到井里和圖像更重要的了。Stampwell形狀已針對球體狀細胞和類器官的成像進行了優化。

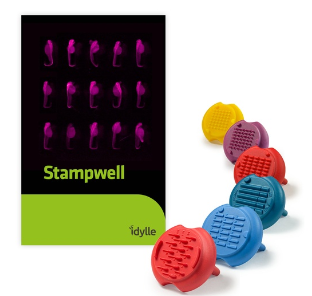

Stampwell stamps imprint arrays of wells in hydrogels in just one time. Nothing more to do than load your samples into the wells and image. The Stampwell shapes have been optimized for the imaging of spheroids and organoids.

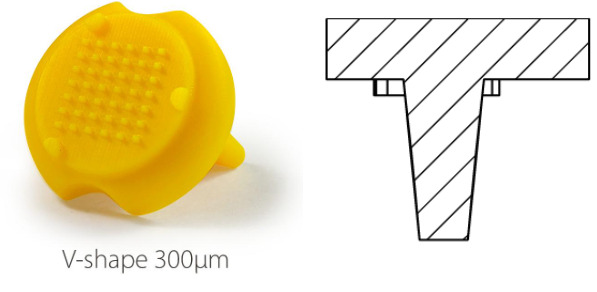

V Shape 300µ:
. Number of pins: 42
.  Depth of the well: 1 mm
. Well bottom diameter: 300µm - Shape: circular
. Well upper side: 1mm*0.5mm - Shape: rectangular

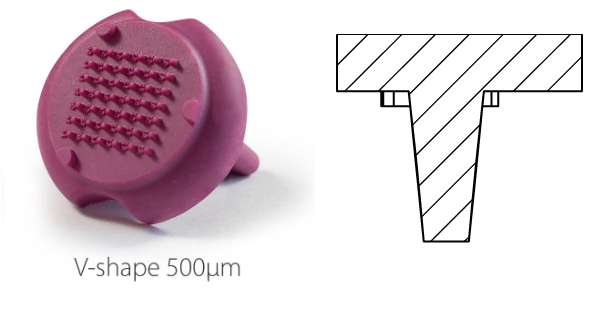

 V Shape 500µ:
. Number of pins: 42
. Shape of the pins: V
. Depth of the well: 1 mm
. Well bottom diameter: 500µm - Shape: circular
. Well upper side: 1mm*0.5mm - Shape: rectangular

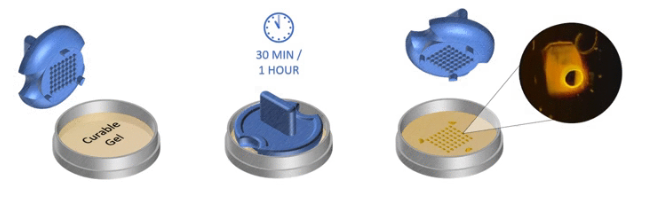

Protocol overview

1. Pour liquid agarose (or other hydrogel)

2. Place the stamp

3. Reticulate the hydrogel

4. Remove the stamp



產品訂購：

中文名稱	產品名稱	貨號	規格
凝膠V型孔制備（3D細胞成像）	Stampwell-V-300	GRE-MOU-V300	1 Unit Pack
凝膠V型孔制備（3D細胞成像）	Stampwell-V-500	GRE-MOU-V500	1 Unit Pack
