顯微鏡蓋玻片 Chitozen - Adhesive?coverslips

Chitozen - Adhesive?coverslips

報價：2407.00

聯系購買

中文名稱：: 顯微鏡蓋玻片 Chitozen - Adhesive?coverslips

英文名稱：: Chitozen - Adhesive?coverslips

品牌：: Idylle

貨號：: TMI-CHI-L

規格：: 1 slide + 3 stencell chambers

報價：: 2407.00

保存溫度：: 常溫

運輸溫度：: 常溫

殼聚糖包被的蓋玻片，可用于對靜止或活菌進行成像。它還可以用于進行長期成像或測試生長條件的變化以及分析細胞行為。

?Chitozen is a chitosan-coated coverslip immobilizing bacteria for microscopy without inducing bacteriostatic effects. It is compatible with 6-channel sticky slides for flow experiments. It is very helpful if you want to:

Image bacteria both still and alive under the microscope
Maintain bacteria in a same focal plane for imaging while preserving their physiology
Renew culture medium, change growth condition (e.g. antibiotics, chemicals, inhibitors) during the experiment and directly observe, in real-time, the bacteria new comportment under the microscope。

Kit contents
Chitozen coverslips are compatible with 6-channel sticky slides to work in a closed system in static or dynamic flow conditions. Order you coverslips alone if you need to work in an open system (i.e. for AFM imaging) or to place them on depression slides.

5-coverslips alone*

> 5x standard (25 x 75 mm) chitosan-coated coverslips

5-coverslips with microfluidic channels (= 30 experiments)

> 5x standard (25 x 75 mm) chitosan-coated coverslips
> 5x bottomless 6-channel sticky slides

(Optional) centrifugation pack: the Chitozen coverslips can be centrifuged using a rack compatible with standard microscope slide (25mmx75mm) dimensions. If needed, add our centrifugation pack to your Chitozen kit. It includes:
> µ-Slide Microscopy Rack (ibidi)
> Magnetic Lid for Microscopy Rack
> Clamp & adapter to securely fasten sticky slides to Chitozen coverslips
*If using the Chitozen coverslips alone, separate wells can be created manually by using a sealing glue or Stencell silicon chambers. We can provide these 2 products for you. Contact us for more information.

Applications
Assay compatibility:
> Fluorescence
> Co-cultures (bacterial predators, immune cells)
> Addition of external factors (e.g. antibiotics, chemicals, inhibitors)
> Static or dynamic conditions
Imaging modes:
> phase-contrast,
> epifluorescence,
> confocal,
> super-resolution microscopy,
> atomic force microscopy (AFM) - documentation & example pictures available on request

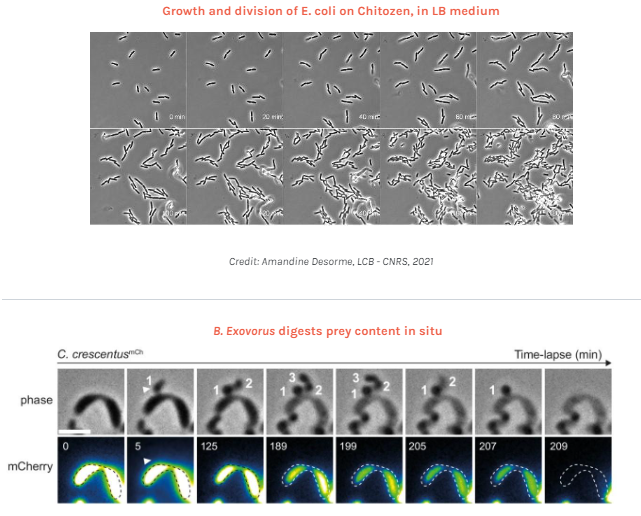

Experimental outputs:
> Behavioural changes: growth, elongation, cell division, fitness, colony/biofilm formation, etc
> Single molecule imaging
Chitozen is efficient with the following bacteria:
> E. coli
> Bacillus subtilis
> Caulobacter crescentus
> Corynebacterium glutamicum
> Helicobacter pylori
> Mycobacterium smegmatis
> Myxococcus xanthus
> Pseudomonas aeruginosa
> Pseudomonas fluorescens
> Salmonella
> Staphylococcus aureus
> Vibrio cholerae
This list is updated regularly according to feedback provided by researchers who use Chitozen.
Technical specifications
Material: glass
Format: 75.0 x 25.0 mm
Thickness: 0.170 mm / 1.5H
Lifetime: up to 12 months at room temperature, shielded from direct sunlight

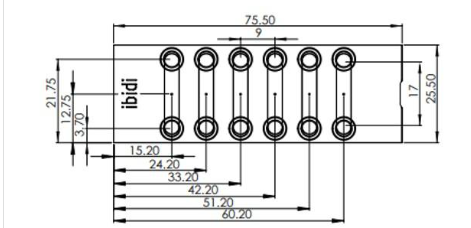

Sticky slide dimensions (mm):

Result :

產品訂購：

中文名稱	產品名稱	貨號	規格
顯微鏡蓋玻片	Chitozen - Adhesive coverslips	TMI-CHI-L	1 slide + 3 stencell chambers
顯微鏡蓋玻片	Chitozen - Adhesive coverslips	TMI-CHI-1	1 slide and 1 sticky slide per pack
顯微鏡蓋玻片	Chitozen - Adhesive coverslips	TMI-CHI-1-CENTRI	1 slide, 1 sticky slide and 4 elements for centrifugation kit
顯微鏡蓋玻片	Chitozen - Adhesive coverslips	TMI-CHI-FULLPACK	5 slides, 5 sticky slides and 4 elements for centrifugation kit
